LC550 High-precision High-speed Inclined CNC Slant Bed Lathe

LC550 High-precision High-speed Inclined CNC Slant Bed Lathe

CNC slant bed lathe features a bed inclined at a 30°, 45°, or 60° angle, combining rigid construction with advanced automation for high-speed, high-precision turning operations. Unlike flat bed designs, the angled bed allows chips and coolant to fall directly into a chip conveyor, preventing accumulation on critical guideways and ensuring consistent long-term accuracy. These machines are the industry standard for modern CNC turning, widely used in automotive, aerospace, medical device, and general precision engineering sectors.

Zamówienie (MOQ) :
1
Pochodzenie produktu :
China
Port przeładunkowy :
Shanghai
Czas realizacji :
40
Waga :
4300kg

Zapytaj teraz

Features

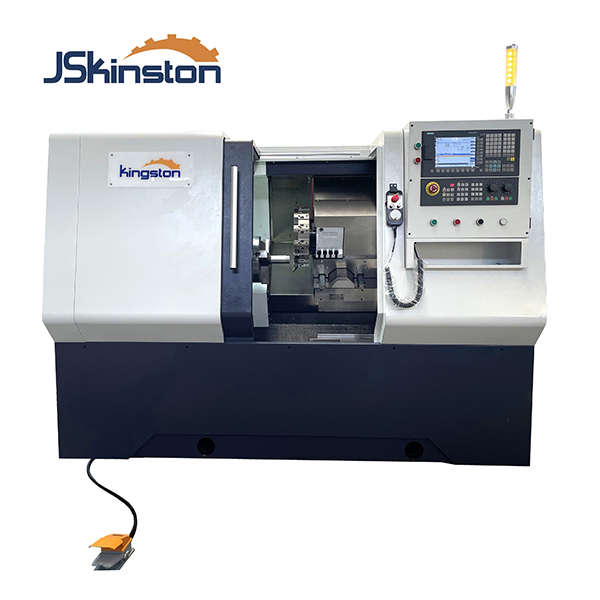

LC550 CNC Slant Bed Lathe

The CNC slant bed lathe represents the gold standard for modern precision turning. With superior chip management, exceptional rigidity, high-speed capabilities, and multi-axis options, these machines deliver faster cycle times, tighter tolerances, and greater efficiency than traditional flat bed designs. Whether you need simple 2-axis turning or complex mill-turn operations in a single setup, a slant bed CNC lathe provides the performance, reliability, and flexibility to meet your production goals.

Applications:

1.Automotive industry: Transmission shafts, gear blanks, brake rotors, and axle components.

2.Aerospace: Engine parts, landing gear components, and hydraulic fittings.

3.Medical devices: Bone screws, surgical instruments, and implantable components.

4.General precision machining: Hydraulic valves, pneumatic fittings, and custom shafts.

5.Electronics: Connectors, heat sinks, and precision housing components.

specification


Specification	Models KST-LC550
Swing over bed	500mm
Swing over cross slide	400mm
Spindle bore Diameter	65mm
Length of work piece	430mm
Distance between centers	400mm
Range of spindle speed	50~4500r/min
Dia of Spindle through hole	50
Spindle nose	A2-6
X-travel	200mm
Z-travel	550mm
X,Z-rapid traverse	30m/min
X,Z-repositioning accuracy	0.003mm
Kind of tool rest	hydraulic horizontal 12 stations
Number of tools	9
Toolholder type	Rack
Max. tool shrank	25x25mm
Max Boring cutter dia	20/25/32/40
Max travel of tailstock	350
Tailstock taper hole	MT5
Packing size (LxWxH)	2350x1900x2000mm
Gross weight	4300kg

product introduction

Superior Chip Evacuation
The inclined bed design allows chips and coolant to flow freely into the chip conveyor, eliminating chip buildup on guideways and reducing tool wear. This results in cleaner operation, longer tool life, and better surface finishes.
High Rigidity and Thermal Stability
Box-way or heavy-duty linear guide options provide exceptional rigidity for heavy cutting, while the slant bed construction improves thermal symmetry, reducing heat-induced distortion during long production runs. This ensures consistent accuracy even in 24/7 operation.

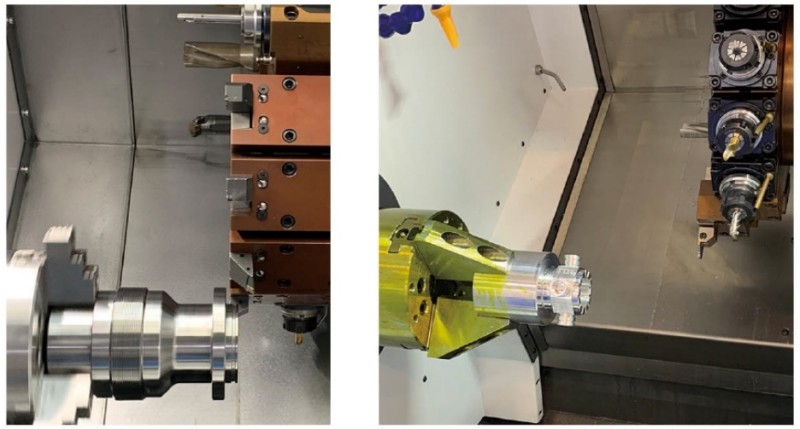

Live Tooling and Multi-Axis Capability
Optional live tooling, C-axis, Y-axis, and sub-spindle configurations enable milling, drilling, tapping, and off-center machining in a single setup. This reduces handling, eliminates secondary operations, and improves part accuracy.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe

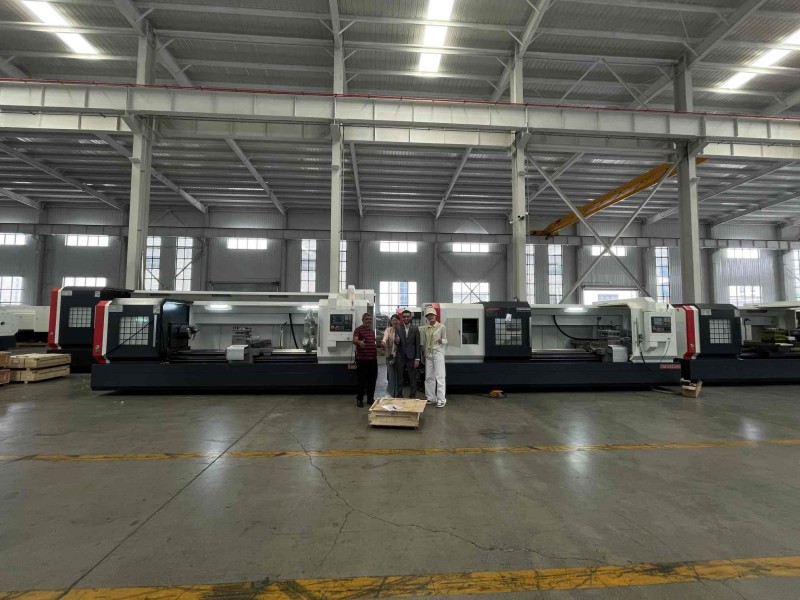

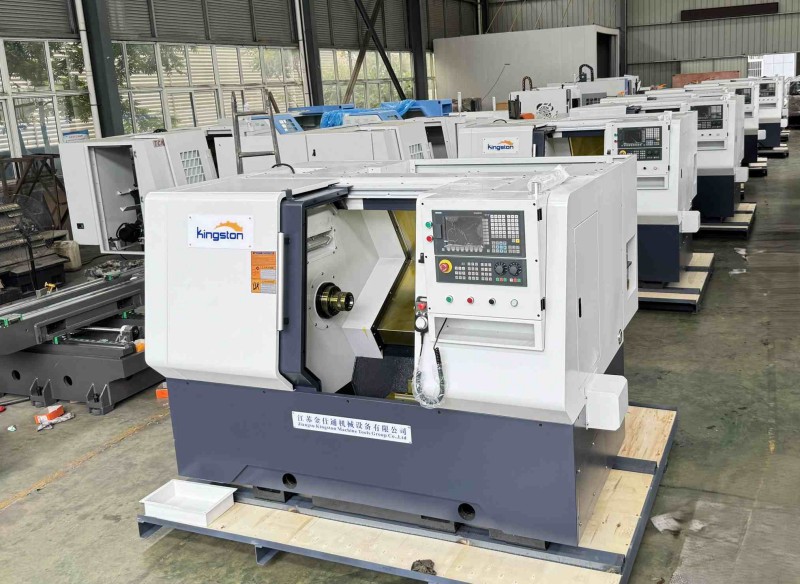

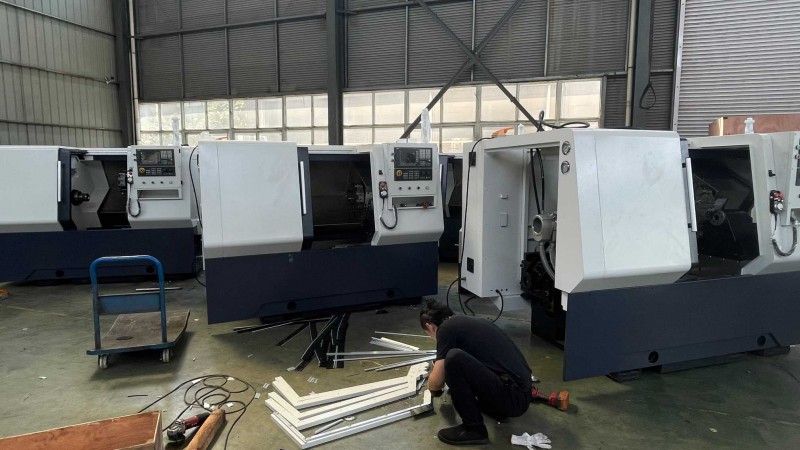

factory show

Professional Production Base, Strength in Precision Manufacturing

Competitive price CNC lathe Slant Bed CNC machining cutting cnc lathe

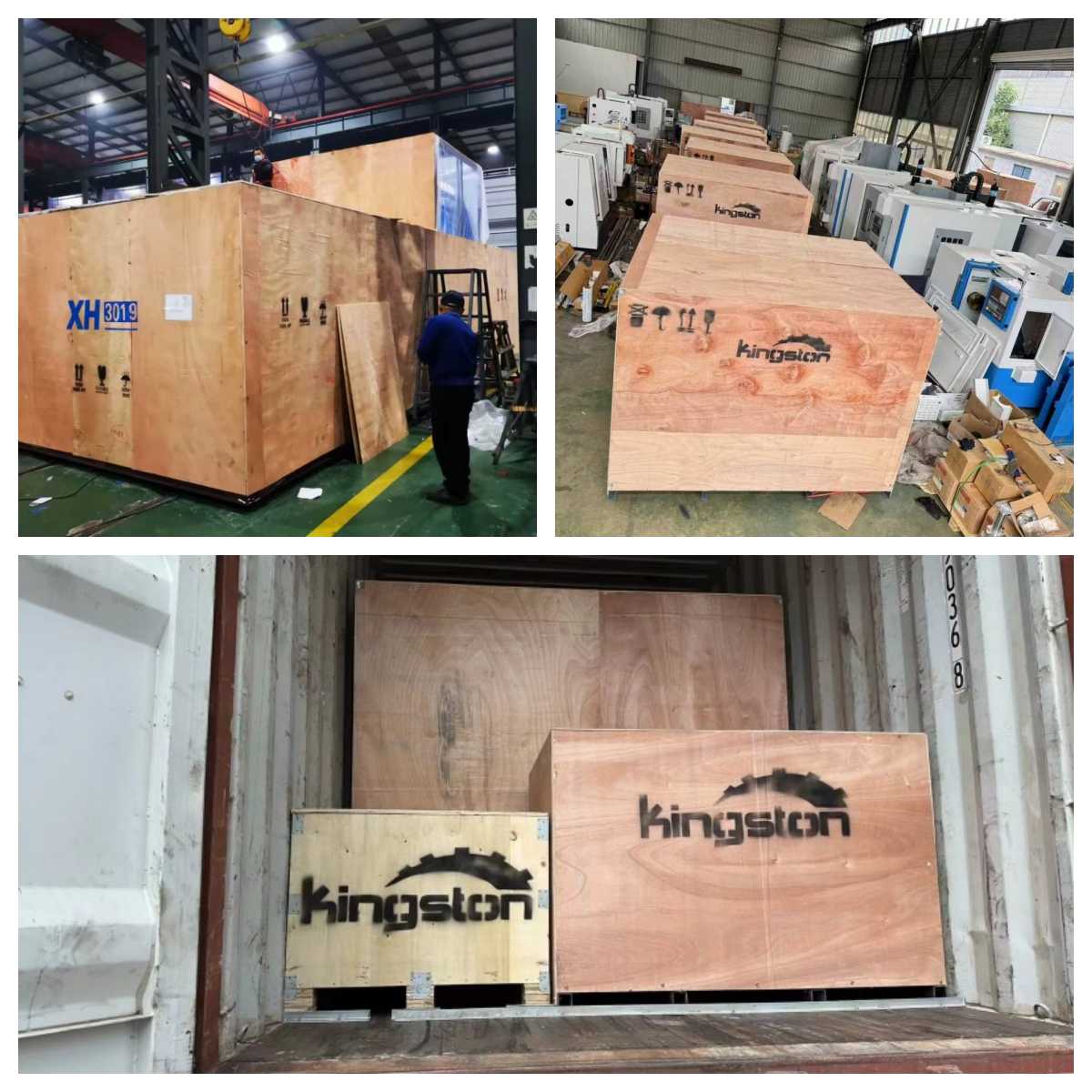

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

lathe
Heavy machinery manufacturer

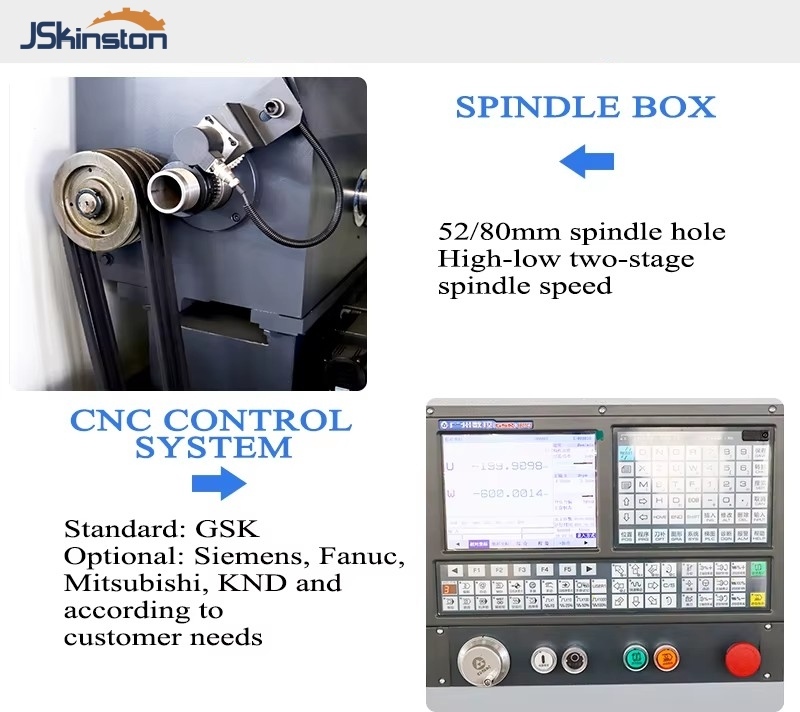

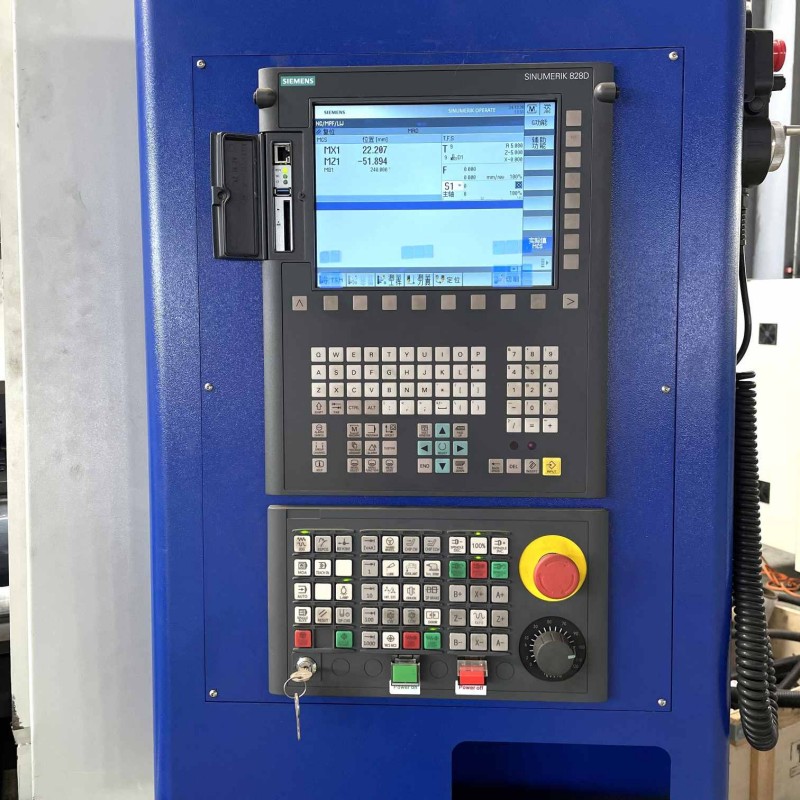

1.What CNC control systems are compatible?

These lathes are compatible with popular CNC controllers including Siemens, Fanuc, GSK, KND, and other standard systems. Please specify your preference when ordering.

2. What is the advantage of a slant bed design over a flat bed?

The angled bed (30°-60°) allows chips and coolant to fall away from the cutting zone, preventing chip buildup on guideways. This results in better surface finishes, longer tool life, and improved long-term accuracy compared to flat bed lathes.

3.How long is the warranty period of this product?

We provide one-year warranty for the industrial universal lathe.

4.What is the MOQ and delivery time of the lathe?

MOQ 1 set, delivery in 40 working days after advance payment.

5.Can a slant bed lathe perform milling and drilling?

Yes, with optional live tooling and C-axis capability, a slant bed CNC lathe can perform milling, drilling, tapping, and off-center machining in a single setup, eliminating secondary operations.
