CKY6180‑6000 Heavy‑Duty CNC Turning Lathe for Heavy‑load Disc & Shaft Workpieces

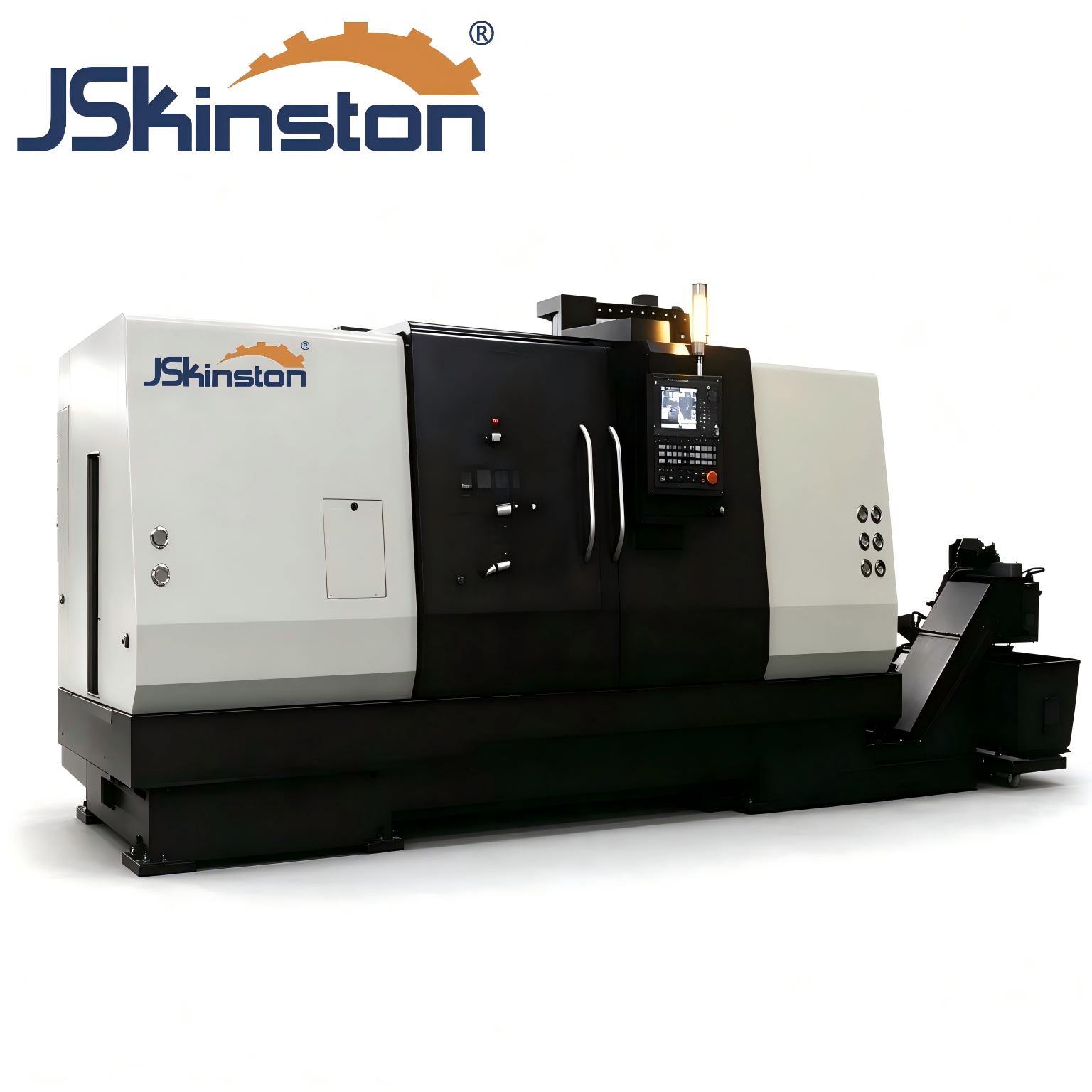

Heavy‑load Metal Cnc Turning Equipment

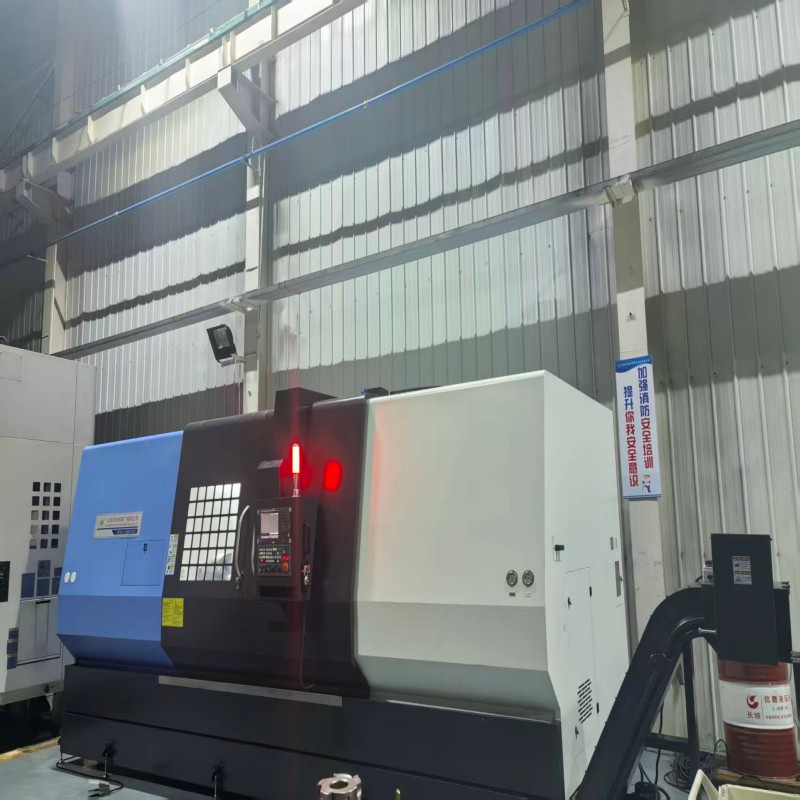

Industrial Disc Workpiece Processing Lathe

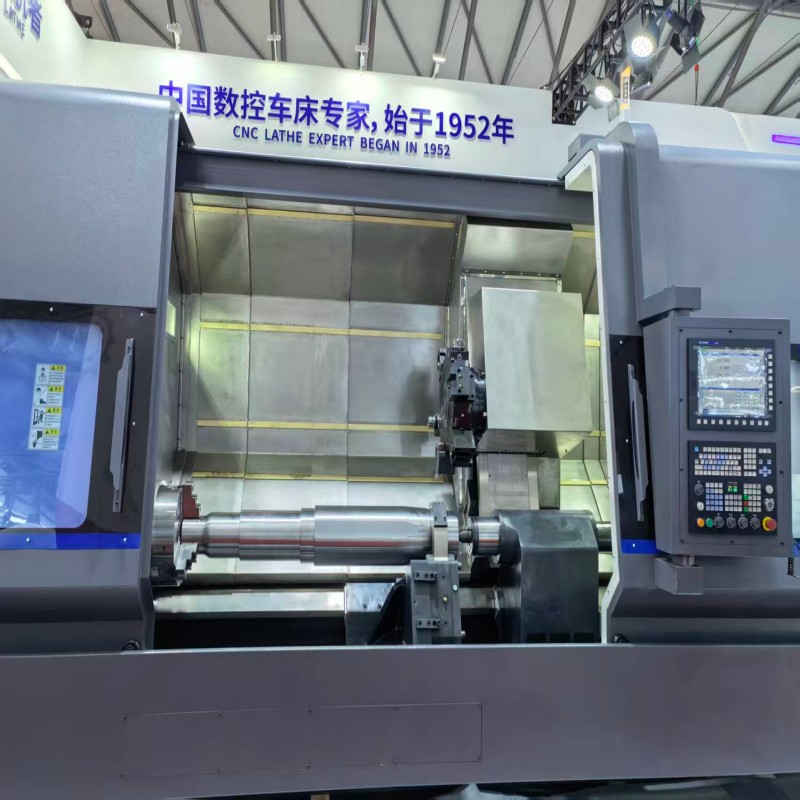

High‑torque Cnc Turning Lathe
Industrial Disc Workpiece Processing Lathe

CKY6180‑6000 Heavy‑Duty CNC Turning Lathe for Heavy‑load Disc & Shaft Workpieces

CKY6180‑6000 heavy‑duty CNC slant bed lathe with 45° integral rear‑mounted inclined bed. Max swing over bed Φ800mm, max turning length 6000mm. Equipped with Taiwan 12‑position hydraulic tool post, NSK high‑precision spindle bearings. Support Fanuc 0i‑TF PLUS / Siemens 828D system, ideal for high‑precision semi‑finishing & finishing of shaft and disc‑shape heavy workpieces.

  • Zamówienie (MOQ) :

    1

  • Pochodzenie produktu :

    China

  • Port przeładunkowy :

    Shanghai

  • Czas realizacji :

    40

  • Waga :

    17000KG
Zapytaj teraz

Heavy duty CNC Slant Bed Lathe CKY6180-3000 Standard Configuration List

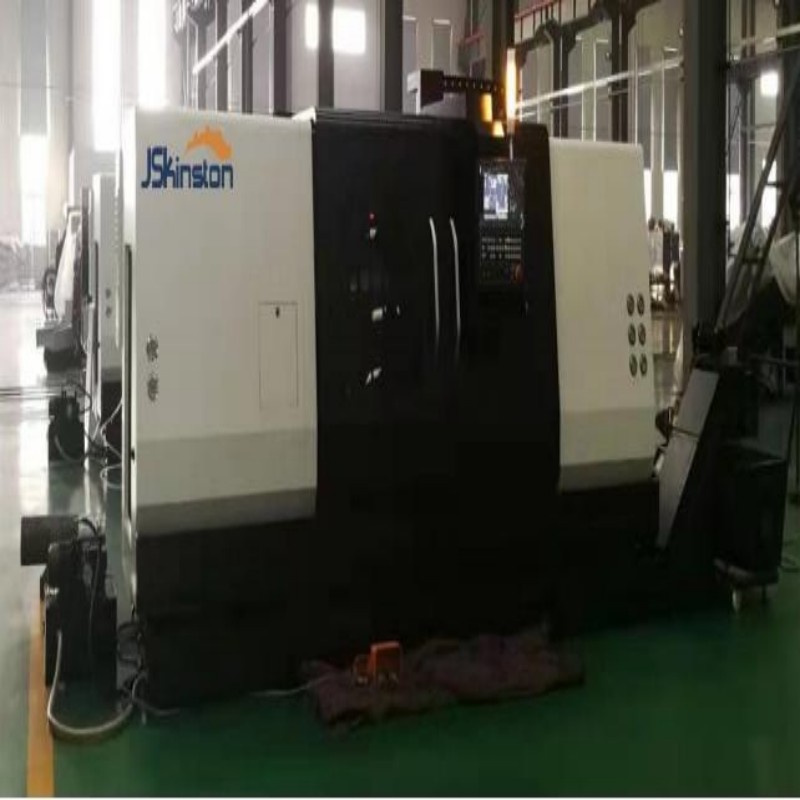

Precision Heavy Component Turning Machine

1. Fanuc 0i‑TF PLUS / Siemens 828D CNC system (optional)

2. NSK high‑precision spindle bearings & ball screw bearings

3. Taiwan 12‑position horizontal hydraulic tool rest

4. Φ500mm 3‑jaw solid hydraulic chuck with soft & hard jaws

5. Hydraulic rotating tailstock Φ170, Morse 6# center

6. Hydraulic station, automatic intermittent lubrication unit

7. Multi‑filter cooling system, chip remover + chip removal cart

8. Full‑enclosed 3‑sliding‑door safety protective cover

9. Work light, foot switch, three‑color warning lamp

10. Complete English technical documents, random tools & adjustment kits



specification


Item Unit Parameter
Max swing over bed mm Φ800
Max swing over carriage mm Φ630
Max turning length mm 6000
Spindle bore diameter mm Φ100
Spindle head form   A2‑11
Spindle speed range r/min 50‑1200
Main motor power kW 30/37
Max spindle torque N·m 2870
Chuck mm Φ500 3‑jaw solid hydraulic chuck
Tailstock sleeve diameter mm Φ170
Tailstock sleeve travel mm 150
X/Z feed motor torque N·m 30 / 30
X/Z rapid traverse speed m/min 10 / 10
X/Z maximum travel mm 355 / 3050
Tool post   Taiwan 12‑position horizontal hydraulic tool rest
Outer tool shank size mm 32×32
Inner tool shank max mm Φ60
Fine turning outer circle accuracy   IT6
Surface roughness Ra μm 0.8‑1.6
Overall dimension(L×W×H) mm 10200 × 2082 × 2000
Machine total weight kg 17000


product introduction

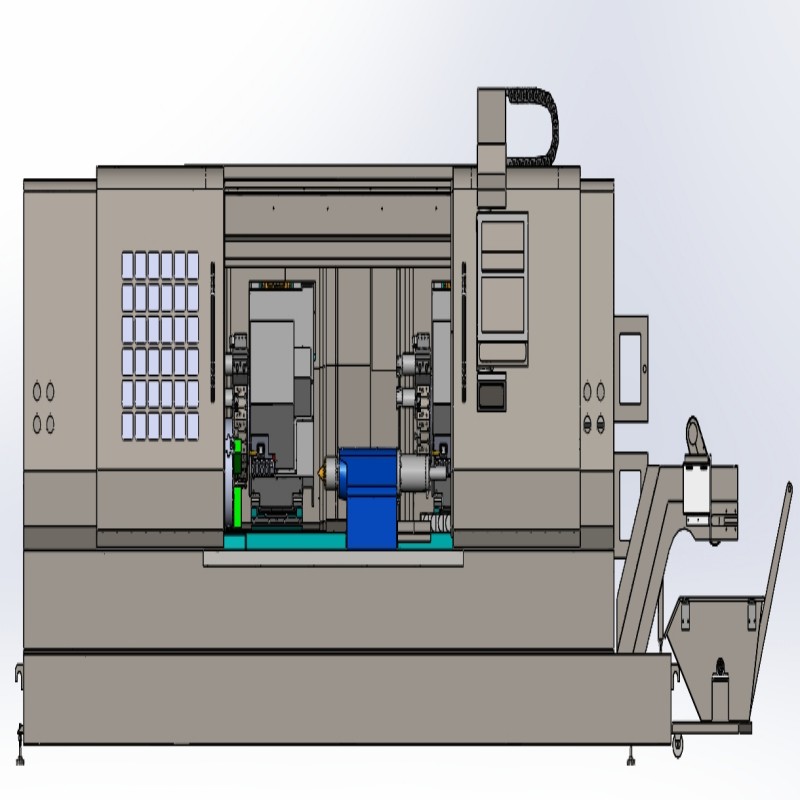

  • Long Workpiece Cnc Slant Bed Lathe

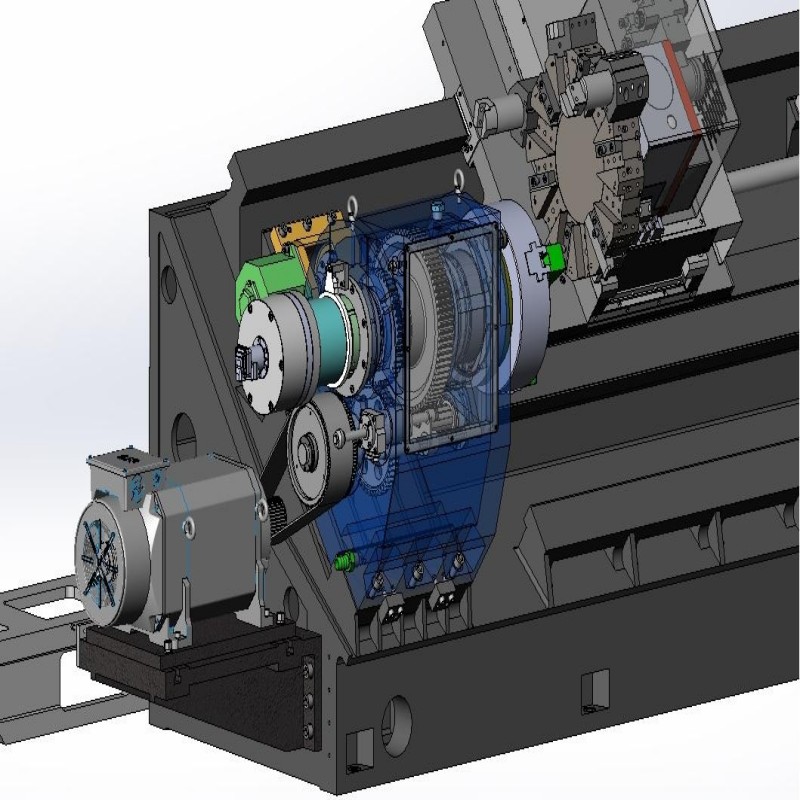

    High‑Torque Hydraulic Two‑Speed Spindle
    Adopt NSK high‑precision spindle bearings. Hydraulic 2‑gear speed change with stepless speed regulation. Realize low‑speed heavy‑stock‑removal cutting and high‑speed finishing, max spindle torque up to 2870Nm.

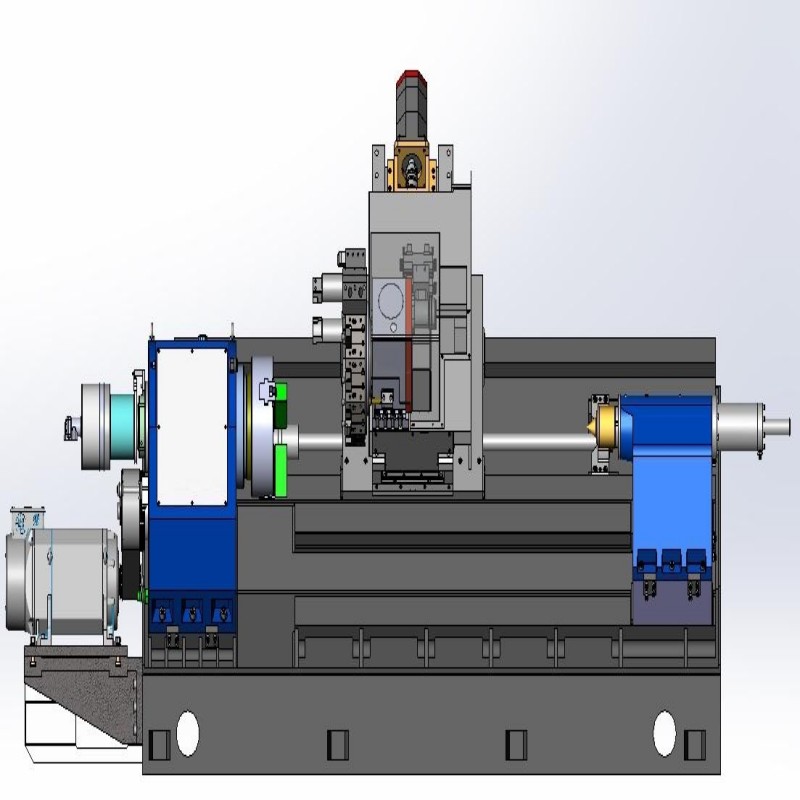

  • High Rigidity Metal Turning Equipment
    Direct‑Drive Feed System, Low Transmission Error
    X/Z axis servo motors connect ball screws via elastic coupling. Ball screw pre‑stretched assembly, one‑end fixed & one‑end floating support, reduce thermal deformation, improve positioning accuracy & dynamic response.
  • Heavy Industry Cnc Machining Lathe
    Reliable Hydraulic Rotating Tailstock
    Hydraulic locking tailstock body, hydraulic clamping tail sleeve, equipped with Morse 6# center, stable support for extra‑long heavy shaft workpieces.
  •
JIANGSU  KINGSTON  MACHINE  TOOLS GROUP    CO.,LTD
Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us



Community charging overall solution covers all application

  • # Mature And Stable Technology
    With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
  • # Support Customized Solutions
    We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
  • # Complete After-sales Service
    We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

--

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe

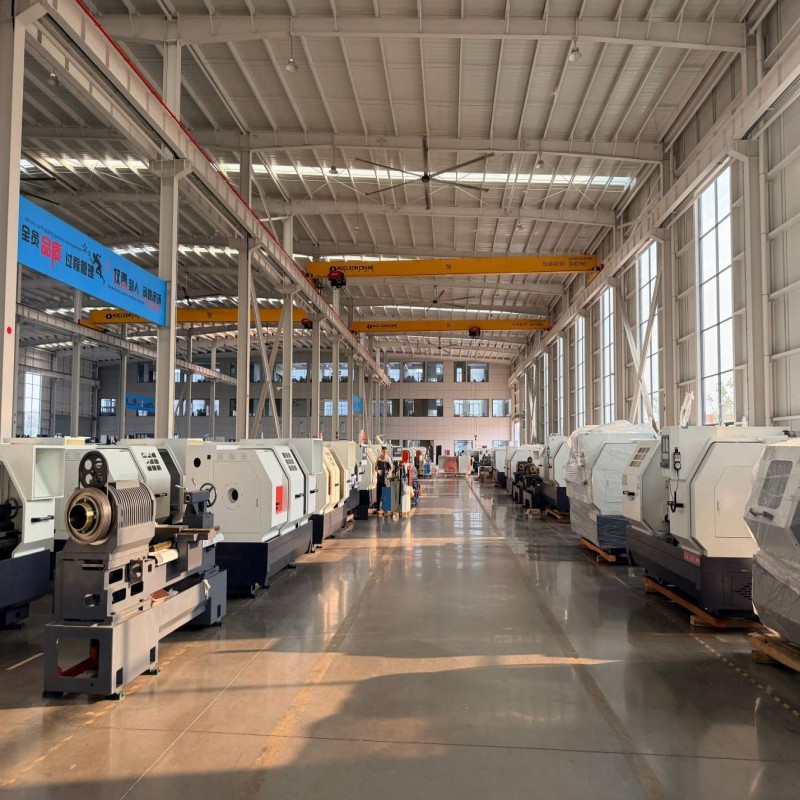

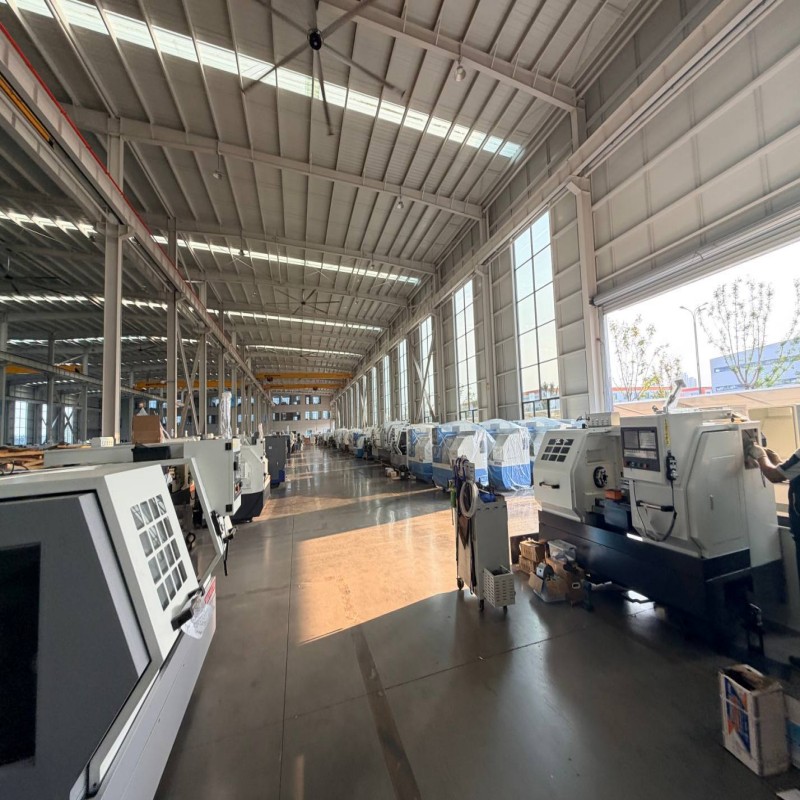

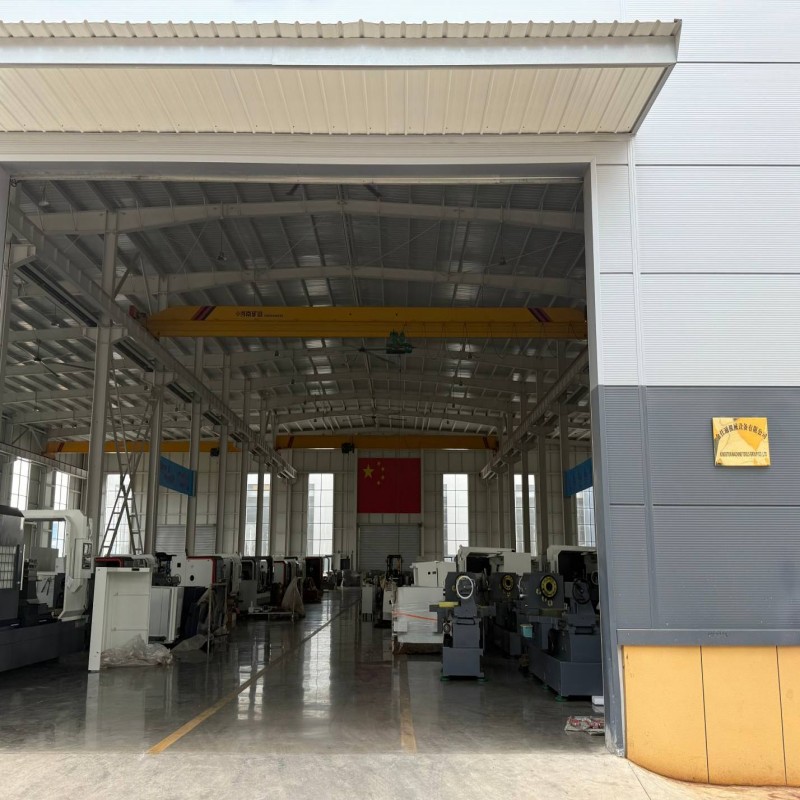

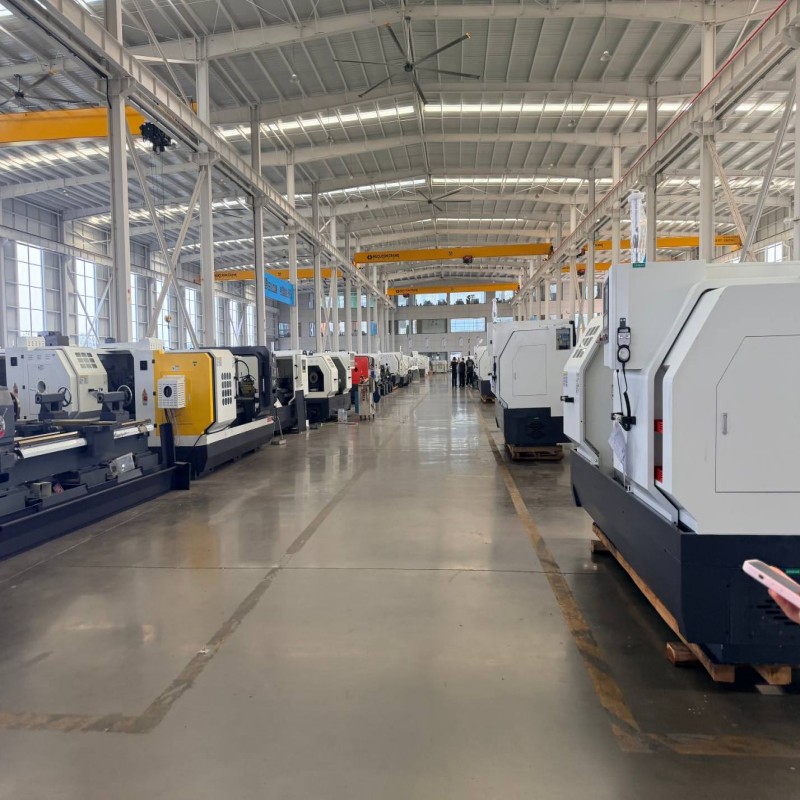

factory show

Professional Production Base, Strength in Precision Manufacturing




Competitive price CNC latheSlant BedCNC machining cutting cnc lathe

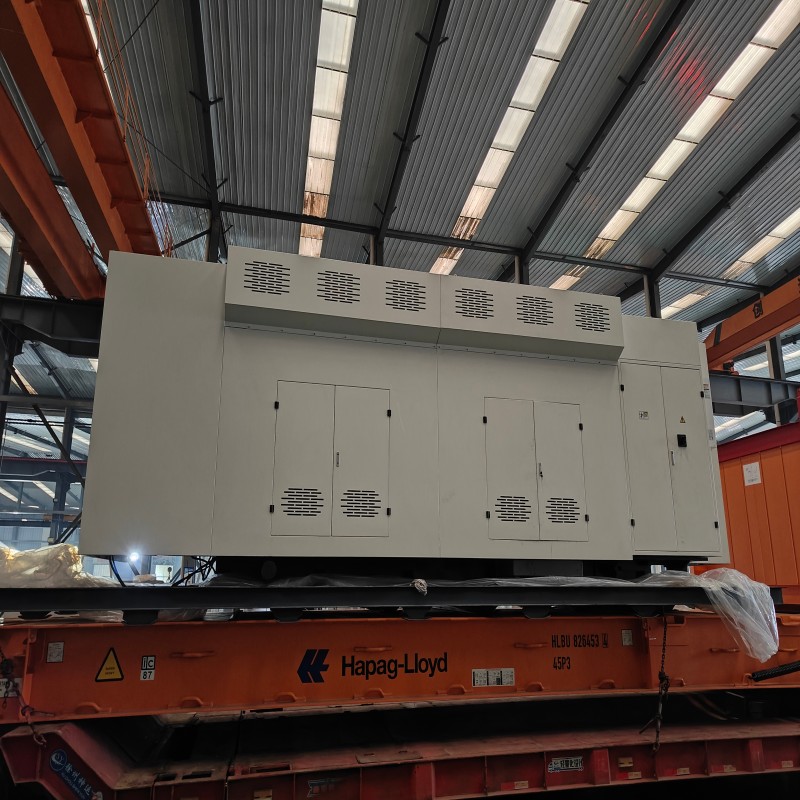

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed



lathe
Heavy machinery manufacturer

FAQ

  1. Q: What bed structure does CKY6180‑6000 adopt? A: It adopts 45‑degree integral rear‑mounted slant bed with heavy‑load rectangular quenched guideways.
  2. Q: What is the max turning diameter and max turning length? A: Max swing over bed Φ800mm, maximum turning length 6000mm.
  3. Q: Which CNC systems are optional for this machine? A: Fanuc 0i‑TF PLUS and Siemens 828D are available for selection.
  4. Q: What is the maximum spindle torque? A: The maximum spindle torque reaches 2870 N·m for heavy‑duty rough turning.
  5. Q: Can I get training for operation and maintenance? A: Yes, free factory‑side training for max 2 persons within 1 working day. Overseas engineer service is available with extra cost.
  6. Q: What is the warranty condition? A: 12‑month warranty from final acceptance date, wearing parts excluded. We respond within 24 hours for after‑sales support.
