Zaawansowana technologia VMC650 FANUC CNC pionowe centrum obróbcze

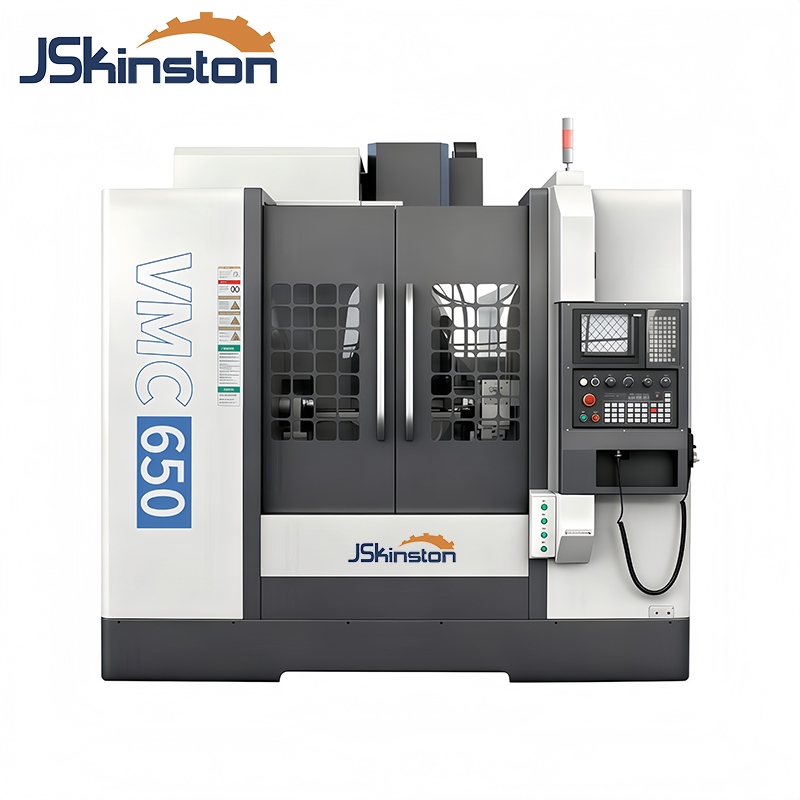

3-5 axis CNC milling machine center

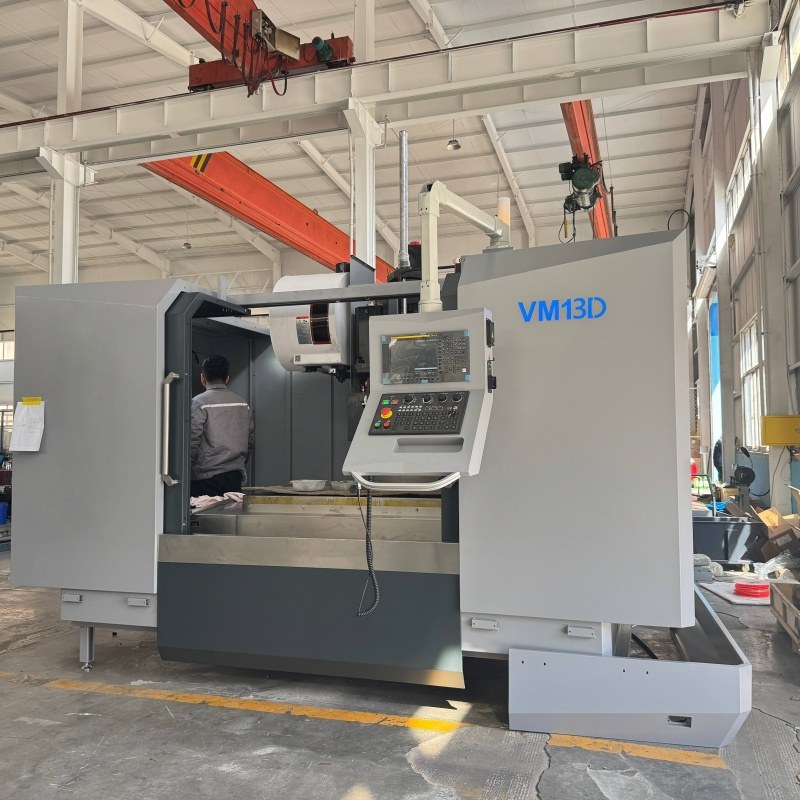

Mini Cnc Machine Center

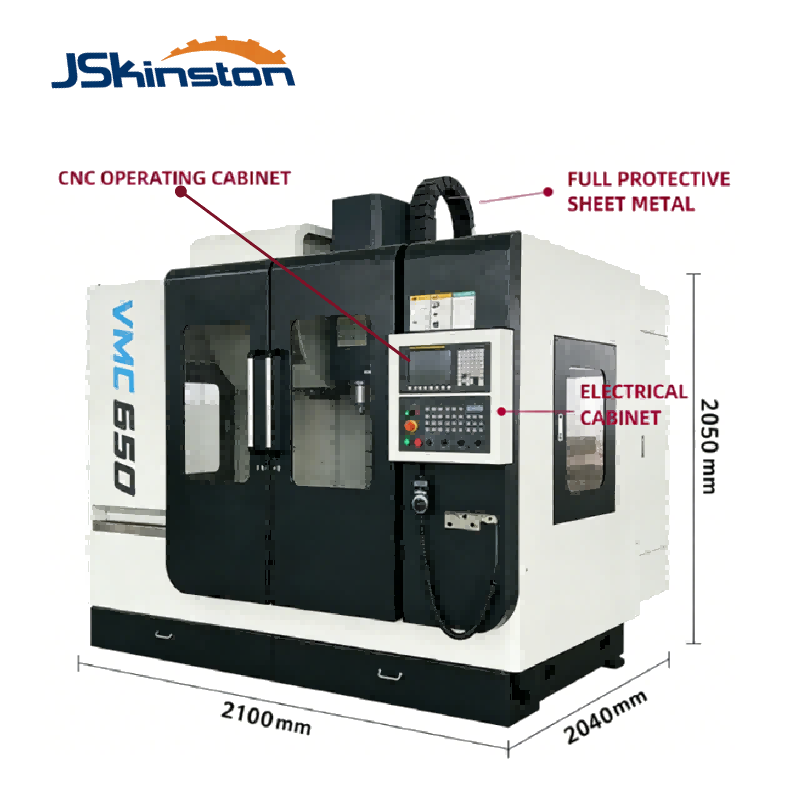

5-axis processing machine tool

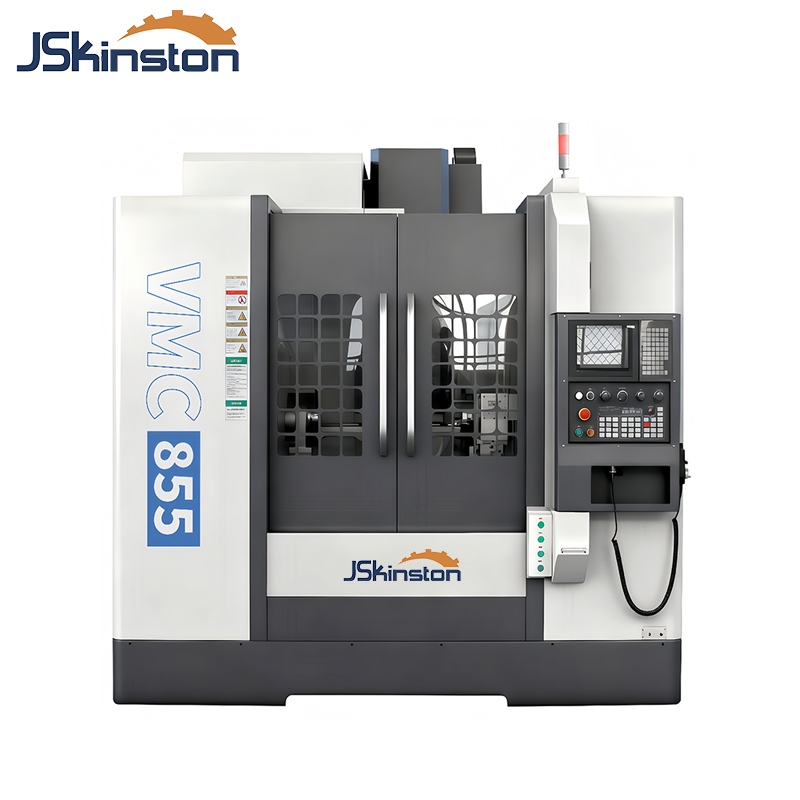

high precision VMC machine

Zaawansowana technologia VMC650 FANUC CNC pionowe centrum obróbcze

Nasze pionowe centrum obróbcze CNC VMC650 to wysokowydajne urządzenie do precyzyjnej obróbki detali średniej wielkości, łączące zaawansowaną technologię z praktyczną konstrukcją. Dzięki zintegrowanej, sztywnej konstrukcji i zoptymalizowanemu projektowi żeber, zapewnia stabilną pracę nawet przy intensywnym cięciu. Wyposażone w wysokoobrotowe, precyzyjne wrzeciono z profesjonalnym chłodzeniem, centrum utrzymuje stałą wydajność i długą żywotność. Jego zakres ruchu umożliwia łatwą obróbkę średnich detali, a precyzyjny system serwo gwarantuje precyzyjne sterowanie ruchem. Kompaktowe, łatwe w montażu i obsłudze, oferuje elastyczną konfigurację i jest szeroko stosowane w przemyśle maszynowym, motoryzacyjnym i form, zapewniając niezawodną wydajność i doskonałą opłacalność, co przekłada się na wysoką jakość produkcji.

  • Zamówienie (MOQ) :

    1

  • Pochodzenie produktu :

    China

  • Kolor :

    Customized

  • Port przeładunkowy :

    Shanghai/Qingdao

  • Czas realizacji :

    30

  • Waga :

    4000kg
Zapytaj teraz

Advanced Technology VMC650 FANUC Cnc Vertical Machine Center

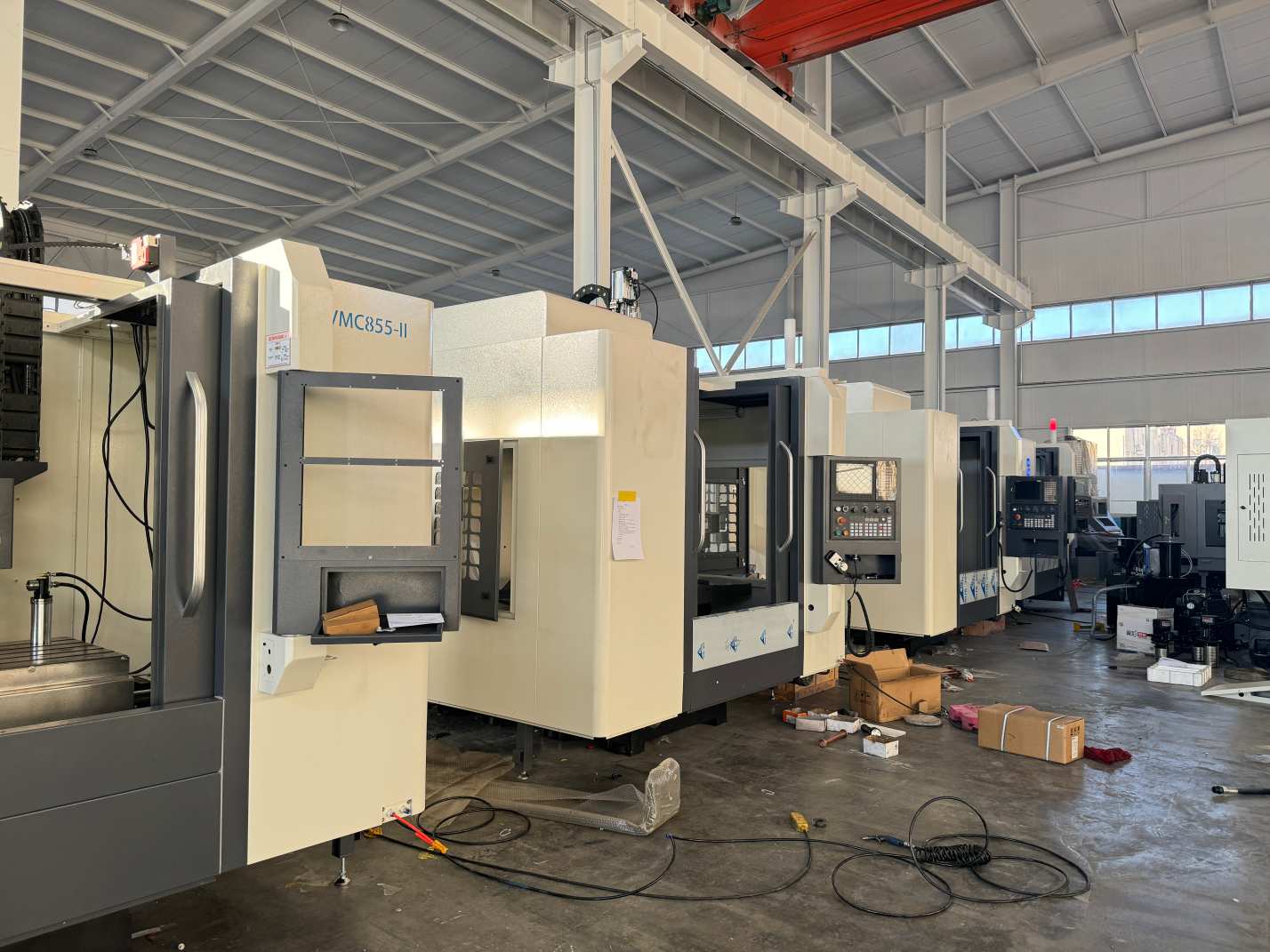

CNC lathe and milling machine

  • Heavy-duty cast iron structure with aging treatment, high rigidity, low vibration, stable long-term operation.
  • X/Y/Z travel 650×500×500mm, BT40 spindle (5.5/7.5kW, 8000–10000rpm), high cutting efficiency.
  • Precision linear guides & C3 ball screws, positioning accuracy ±0.008mm, repeatability ±0.005mm.
  • 16-tool automatic tool changer (ATC), fast tool change, supports one-stop milling/drilling/tapping/boring.
  • Compatible with Fanuc/Siemens/Mitsubishi systems, full protection, easy operation & maintenance.

  • Ideal for auto parts, molds, hardware, aerospace & small-batch precision machining.























specification

Specification

Unit

VMC650

Table size

mm

800*500

T Slots

-

5-18-90

Max table load

Kg

400

Table travel X

mm

600

Table travel Y

mm

500

Table travel Z

mm

500

Spindle nose to table surface

mm

120-620

Spindle center to column surface

mm

573

Spindle speed range and driving method

rpm

8000 belt driving

Spindle taper

/

BT40

Spindle diameter

mm

120

Cutting feed speed

mm/min

1-10000

X/Y/Z Rapid feed speed

m/min

36/36/32

Hiwin lead screw



4016

Hiwin linear guide



X：35、Y：35、Z：35

Magazine capacity

T

24

Magazine type



Disc type

Max tool diameter(No adjacent tool)

mm

φ80/150

Controller



FANUC 0i MF3B

Spindle motor power

Kw

5.5/7.5

Positioning accuracy(JIS standard)

mm

±0.004

Repeatability Positioning accuracy(JIS standard)

mm

±0.003

Net weight

kg

4000

Overall size

mm

3000*2250*2450



Product Advantages

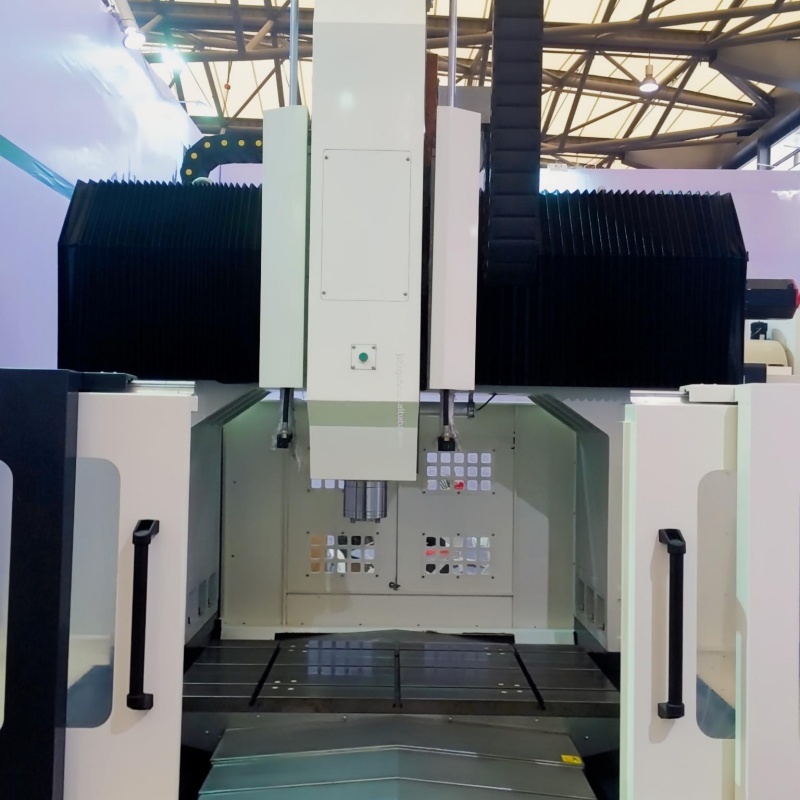

  • CNC multi-function turning machine
    SME-oriented
    VMC650 is a cost-effective, user-friendly solution for small and medium-sized enterprises, focusing on practicality and efficiency.

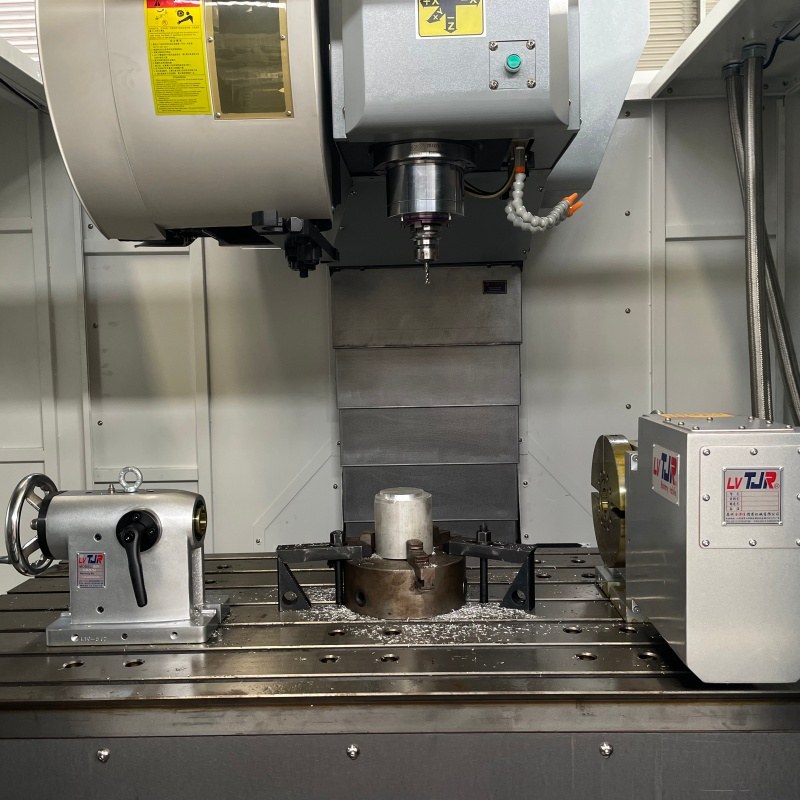

  • automatic VMC1160 machine
    Space-saving & Easy Operation
    Compact structure saves space, and it’s easy to operate even for beginners with basic CNC experience.
  • BT40 spindle taper machining center
    Stable & Cost-efficient
    High-precision positioning, durable components and low maintenance reduce rework and long-term operational costs.

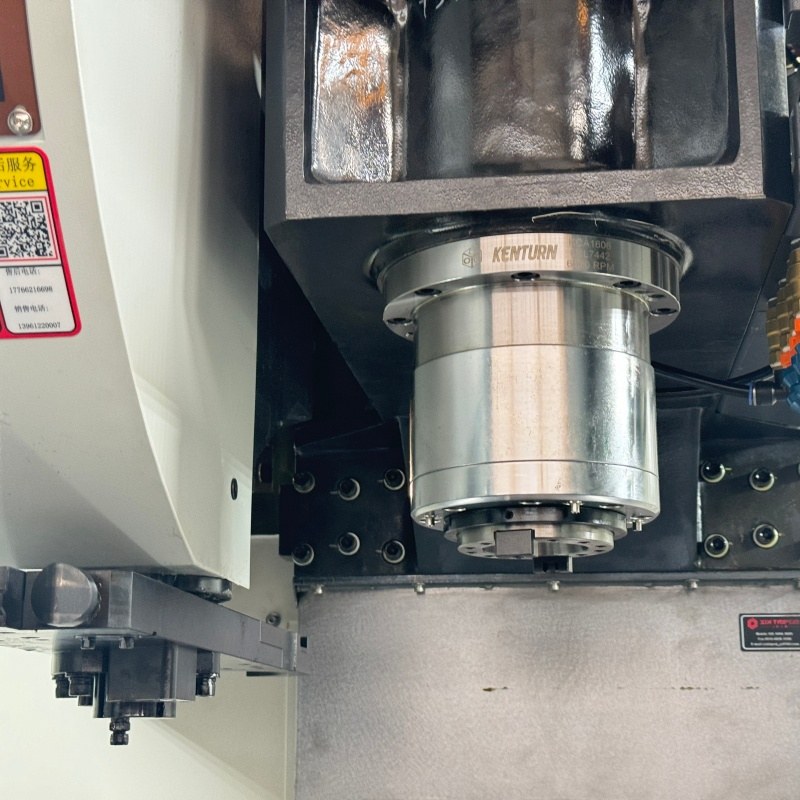

  • vmc machine 3 axis vertical
    Versatile & Customizable
    Compatible with mainstream CNC systems, it adapts to auto parts, hardware and mold processing needs.

Details presentation

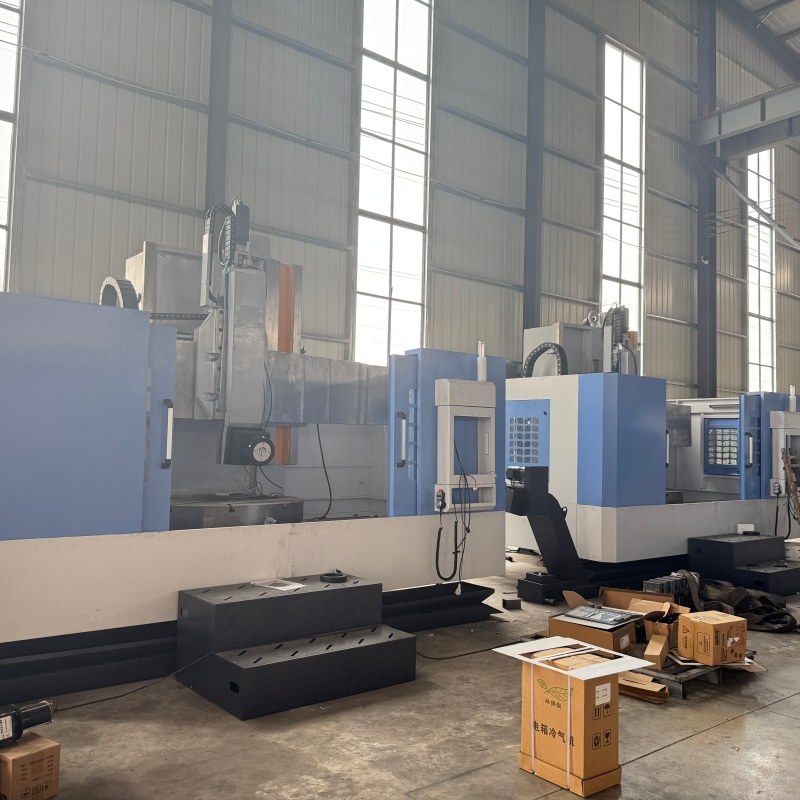

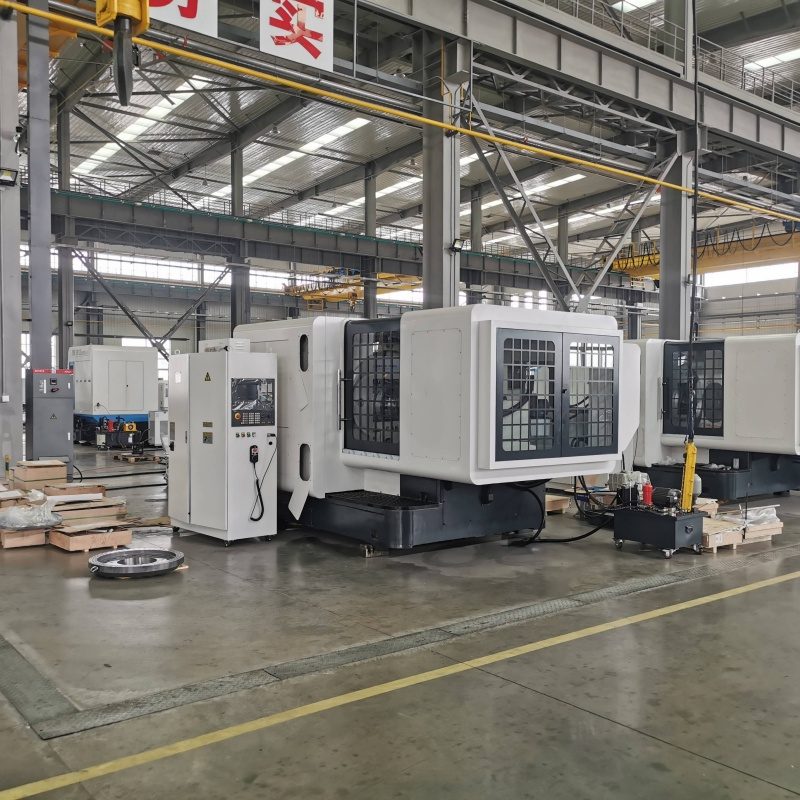

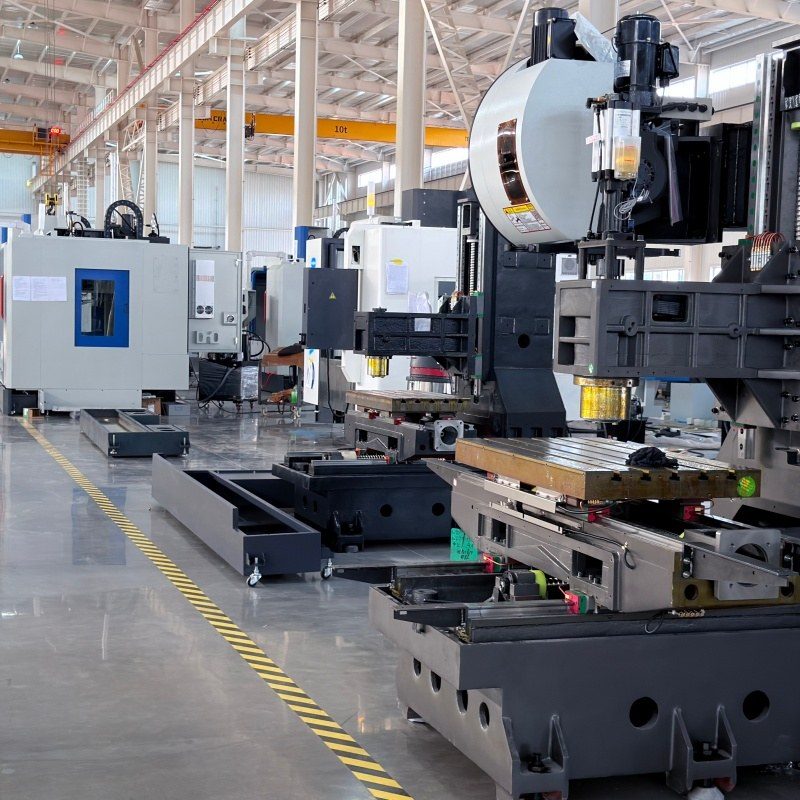

CNC milling machine for metel moldCompetitive price VMC1160 machine

CNC turning milling center Competitive price VMC1160 machine

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD
Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose u

  • # Mature And Stable Technology
    With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
  • # Support Customized Solutions
    We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
  • # Complete After-sales Service
    We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

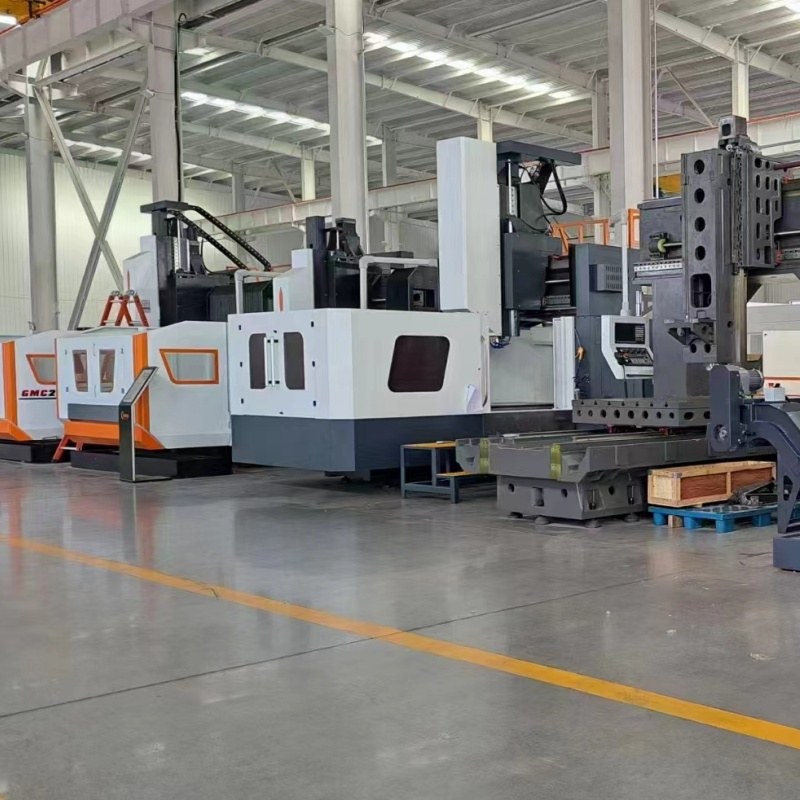

factory show

Professional Production Base, Strength in Precision Manufacturing


Heavy machineryFactory ExhibitionVMC machineHigh-quality cnc lathe

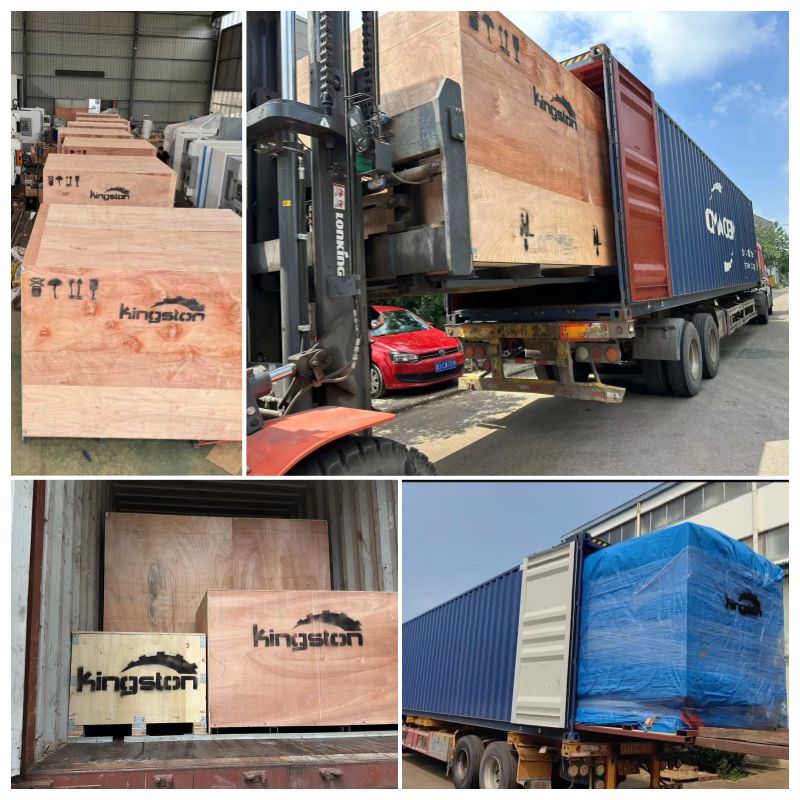

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Long service life VMC650 center

Heavy machinery manufacturer

FAQ

1. Q: What is the spindle speed range of this machining center?
A: The spindle speed can be adjusted steplessly, with a wide speed range, suitable for both high-speed finishing and heavy-duty rough machining.
2. Q: How efficient is the automatic tool change function?
A: Equipped with a high-speed automatic tool changer, the tool change time is short, which greatly improves the overall processing efficiency and reduces manual operation.
3. Q: Can the machine be connected to an automatic production line?
A: Yes, it supports connection with automatic loading and unloading equipment, which can realize unmanned operation and adapt to large-scale mass production.
4. Q: What is the service life of the machine under normal use?
A: With high-quality components and strict manufacturing processes, the machine has a long service life, and can maintain stable performance after long-term continuous operation.
5.Q: Does the machine have a safety protection system?
A: It is equipped with a full set of safety protection devices, including emergency stop, overload protection and safety door, to ensure the safety of operators and equipment.
