CW6280 is a gap bed universal horizontal lathe, distinguished from CW6180 by the removable gap section. When the gap is opened, it can process extra-large disc or flange parts that exceed the normal swing over bed limit, which is the biggest advantage for shops that need to handle both long shafts and large round workpieces.
Built around an integral HT300 cast iron bed, the machine goes through vibration aging and high-frequency hardening on guideways. This process eliminates internal stress and keeps stable rigidity under heavy cutting load. Many low-cost lathes skip stress relief and surface grinding, and their accuracy will drift after several months of heavy use. Our CW6280 adopts full in-house machining and heat treatment, so precision stays consistent for long-term workshop operationacrmachine....
The standard max swing over bed is 800 mm, with optional center distance from 1500mm, 2000mm, 3000mm, 4000mm up to 6000mm. The spindle bore is available in 105mm or 130mm optional, supporting full bar feeding. It can perform cylindrical turning, facing, boring, drilling, grooving and threading, including metric, inch, module and diametral pitch threads. It works well on steel, cast iron and non-ferrous metalsshanshucnc....
1. Gap bed design for oversized workpieces
The detachable gap allows turning large flanges, gear blanks and circular parts, which cannot be finished on standard straight-bed CW6180 lathes. Flexible for mixed batch production and repair jobs.
2. Strong rigidity for heavy stock removal
Wide 600mm bed guideway, reinforced headstock and multi-bearing spindle support. It takes heavy continuous cutting without obvious vibration, suitable for rough turning and semi-finishing of heavy shafts.
3. Wide spindle speed range & stable torque
Precision hardened and ground gears inside headstock, low noise and smooth transmission. Variable speed option is available to match different cutting materials and tools.
4. Versatile threading & machining functions
One machine covers multiple thread standards, widely used for hydraulic cylinder, pipe fitting, pump and valve component processing.
CW6280 heavy duty lathe is widely used in mining maintenance workshops, oil & gas equipment, ship spare parts, wind power accessories, heavy machinery repair, steel structure factories and job shops. It is especially favored by overseas after-sales maintenance teams and turnkey workshop projects such as Saudi mining workshops, because it handles varied heavy repair work without frequent breakdowns.
- Hydraulic chuck
- Hydraulic tailstock
- Taper turning attachment
- Coolant system, lamp and safety guard
- CE standard export package
Q: What is the max swing of CW6280?
A: Max swing over bed is 800 mm. Swing over carriage is around 480–520 mm.

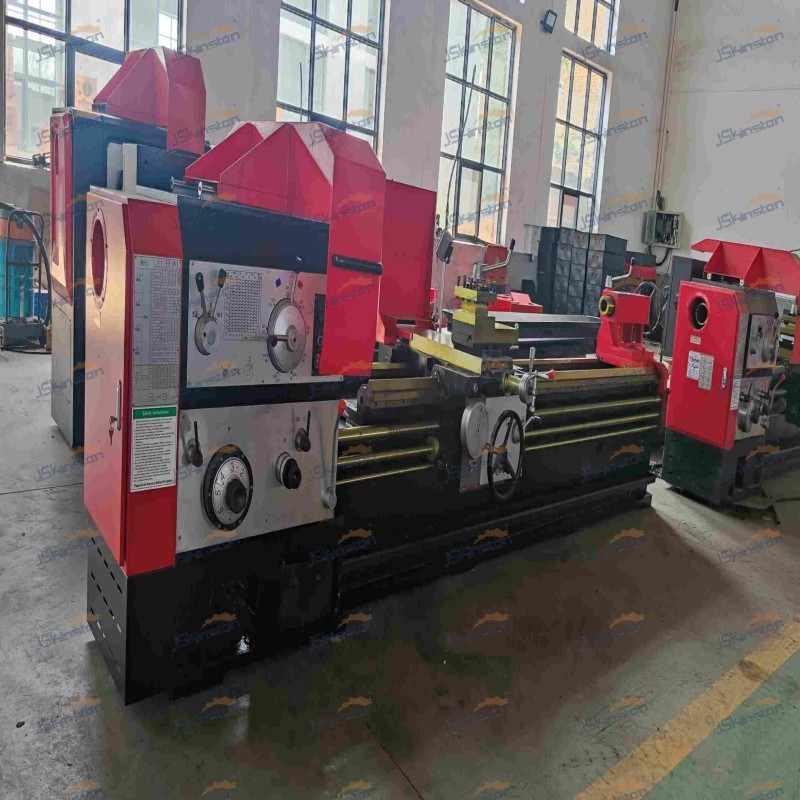

Q: What is the difference between CW6280 and CW6263?
A: CW6263 swing is 630mm, smaller than CW6280’s 800mm, for medium duty work. CW6280 is built for heavier and larger parts.
Q: Can CW6280 cut pipe threads?
A: Yes, it supports inch thread cutting, suitable for oil country tubing and pipe fittings.
